How Do You Use Soft Loop Tie-Down Straps?

To use a soft loop, verify an approved cargo point and suitable loop, hook, strap, and anchor. Inspect the loop, attach it as its maker directs, seat the hook, and tension the main strap. Check cargo movement before driving and reinspect after departure. The loop provides a connection; it does not replace the strap.

What Is a Soft Loop Tie-Down Strap?

A soft loop is a webbing connection that lets a tie-down hook engage a loop instead of the cargo directly. The cargo contact point is an approved place on the load; the vehicle anchor is a suitable rated connection on the truck or trailer. The main strap and its ratchet or other tensioner apply tension.

Some ties have two sewn eyes; others are integrated strap ends. An endless loop has no sewn eyes. Their methods and ratings can differ. A soft tie is neither a tensioner nor a rated trailer anchor.

When Should You Use a Soft Loop Instead of a Direct Hook?

Consider a soft loop when an approved cargo point is awkward for a hook or keeping metal away from a finish matters. It offers a hook connection while webbing contacts the approved point, as this sewn-eye example illustrates. Check the cargo maker’s instructions for transport points.

Webbing can still rub, collect grit, or bear on an edge. Inspect the contact area and use compatible protection where needed. A loop cannot strengthen a weak point or guarantee a scratch-free finish.

What Should You Check Before Attaching a Soft Loop?

Read the exact loop and cargo instructions. Confirm the loop’s working load limit (WLL) for its intended configuration and loading direction; the main strap’s rating does not automatically apply to a separate tie. If the loop’s rating cannot be verified, ask its maker or select a verifiable component.

Inspect webbing and stitching for cuts, pulled threads, abrasion, burns, and contamination. The loop must reach without forcing the hook against the cargo. Verify hook fit and engagement, anchor suitability, and installation.

Keep clear of controls, cables, wiring, hoses, sharp or hot edges, and moving parts. Check pull direction, possible sliding, and edge protection. Physical fit alone does not establish an approved point.

How Do You Use Soft Loop Tie-Down Straps Step by Step?

This example applies only to a removable, sewn-eye loop whose maker permits one eye to pass through the other. DiscountRamps illustrates this method. These are not verified instructions for TorkStrap PRO’s included ties.

1. Choose the point. Use a cargo-maker-approved transport point suited to the pull direction.
2. Inspect the loop. Check its rating, webbing, and seams; lay it flat without twists or contact with controls.
3. Wrap the point. Bring the two eyes together where the hook can engage without bearing on the cargo.
4. Feed one eye through the other. Pull the exposed eye until the wrap seats as the loop maker shows. Do not improvise knots or double its rating.
5. Engage the hook. Seat a compatible main-strap hook fully in the exposed eye; check its orientation under tension.
6. Tension the strap. Connect its other end to a suitable anchor and tension under the strap maker’s instructions without crushing sensitive parts.
7. Finish the setup. Protect webbing, secure tails, and add blocking or other restraints for relevant movement.
8. Check and reinspect. Check for obvious cargo movement; stop safely after departure to inspect the connection and tension.

Follow the maker’s eye orientation; integrated and endless loops may use different methods.

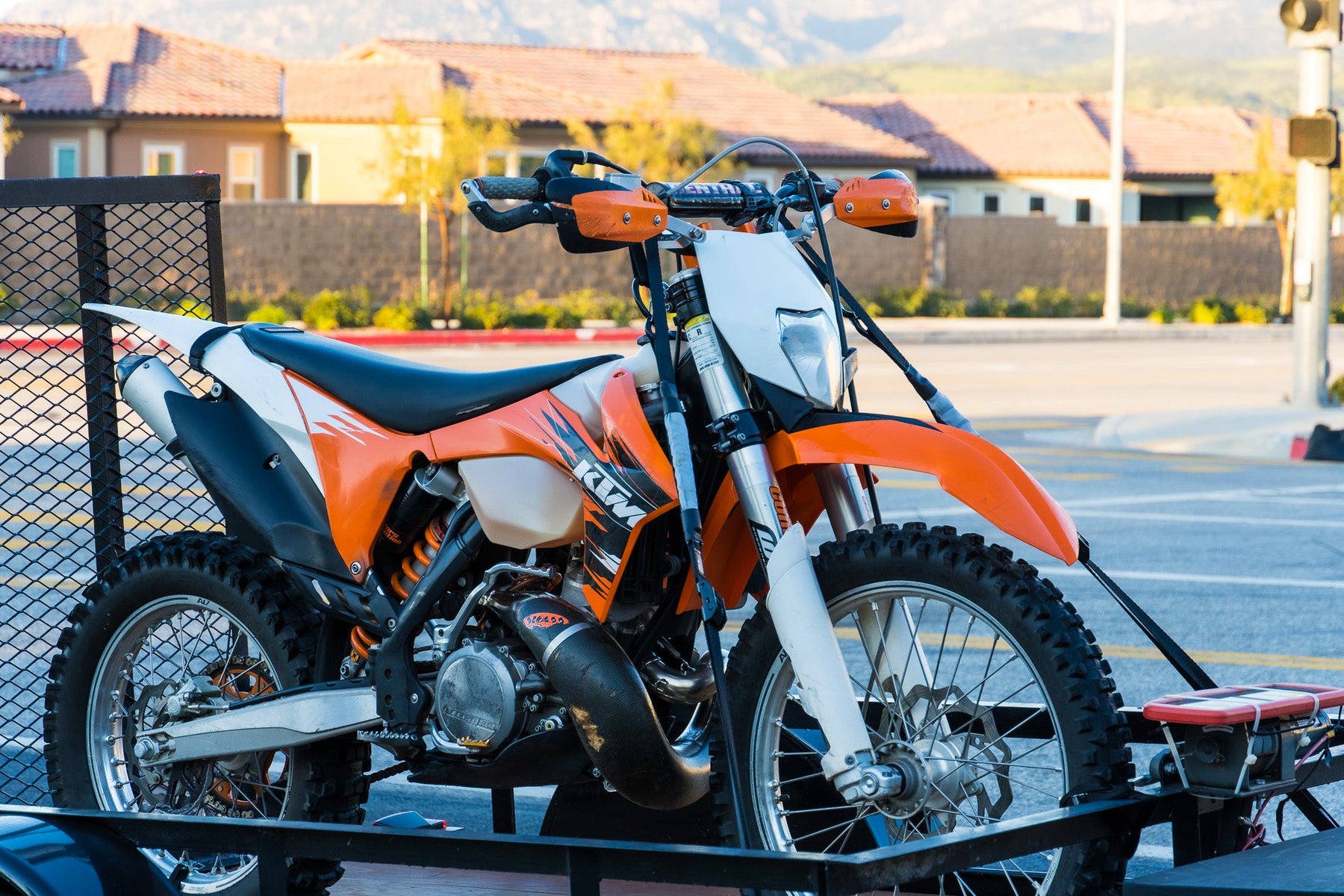

Where Can Soft Loops Attach on Motorcycles, ATVs, and Other Cargo?

Use transport points approved for the cargo and pull direction. A sturdy-looking handlebar, fork, frame tube, or rack is not automatically suitable. Avoid weak plastic and interference with controls. Harley-Davidson advises consulting the motorcycle manual and avoiding cables, hoses, wiring, and sharp hardware.

For application-specific procedures, see TorkStrap’s motorcycle tie-down guide, ATV trailer guide, or UTV securement guide.

Does a Soft Loop Change the Working Load Limit?

Adding a soft loop does not raise the main strap’s WLL. WLL is the published normal-service rating under a maker’s instructions; maximum breaking strength is a failure-related figure, not usable capacity. The loop, strap, hook, anchor, mounting structure, and cargo point all matter. See TorkStrap’s WLL versus break-strength explanation.

The 49 CFR §393.108 limits a covered tiedown’s WLL by applicable components or anchors. FMCSA’s rules cover regulated commercial motor vehicles in interstate commerce and may not apply identically to private hauling.

Do not double a loop’s rating because it wraps around a point, divide cargo weight by a guessed strap count, or treat one rating as complete-system capacity. Routing, movement directions, and blocking still matter.

What Is Different About TorkStrap PRO’s Included Soft Ties?

TorkStrap PRO is a 25-foot by 2-inch spring-supported ratchet strap with a listed 3,333-pound safe WLL, 10,000-pound maximum breaking strength, and two 24-inch soft ties; see its current product specifications. The 10,000-pound figure is not its working rating. Its page does not clearly give each tie’s separate WLL or confirm an eye-through-eye procedure; do not infer either.

The tie supplies a connection; the ratchet tensions the strap. Dynamic tension is intended to respond as a correctly secured load settles, without guaranteeing immobility or eliminating inspection. Compare the TorkStrap models and check PRO instructions, compatibility, specifications, and availability.

What Soft-Loop Mistakes Should You Avoid?

Avoid unapproved points, damaged stitching, twisted webbing, and sharp, hot, or moving parts. Do not leave hooks partly engaged, use unverified anchors, over-tighten sensitive cargo, or leave loose tails.

The loop is one connection, not a complete restraint. Do not select by breaking strength or skip reinspection. Control rolling and tipping with appropriate restraints or blocking.

What Should You Check Before Driving?

Check the whole connection. NHTSA advises directly securing large objects and double-checking before departure; Trailer Safety Week recommends inspecting tie-downs and checking early in a trip.

• The loop is sound and its applicable rating and instructions are known.
• The cargo point is approved; webbing lies flat and avoids vulnerable parts.
• Hooks are fully engaged, and the strap and rated anchors are compatible.
• Routing controls relevant movement; edges are protected where needed.
• Blocking or chocks are in place where the cargo requires them.
• Loose tails are secured away from wheels, heat, and moving equipment.
• The load has been checked for obvious movement; a safe reinspection stop is planned.

A hand check can reveal movement; it is not a load-rating test. See the trailer tie-down workflow for the wider loading process.

Frequently Asked Questions

What is a soft loop used for?

A soft loop gives a compatible hook a webbing connection at a manufacturer-approved cargo point. It can help keep metal hardware away from a finish or reach a point the hook cannot engage directly. It still needs an appropriate rating, routing, main strap, and anchor; it does not tension the load itself.

Which eye goes through the other?

Follow the instructions for your specific sewn-eye tie. In the example above, one eye passes through the other and the hook engages the exposed eye; the maker’s illustration determines the intended orientation. Some loops and integrated ends use a different arrangement, so do not apply that example to every product.

Can I attach a hook directly to my motorcycle?

Only if the motorcycle maker approves the particular transport point, and the hook fits and seats without damaging nearby parts. A soft loop may offer a more suitable connection at an approved location. Neither direct contact nor an added loop makes an unapproved handlebar, cable, or plastic component suitable.

Does a soft loop replace a ratchet strap?

No. A removable soft loop provides a connection for the hook; it cannot tension the main strap or restrain the cargo by itself. Select the strap and tensioner for the complete setup, then verify compatible hooks, cargo points, anchors, and any separate loop rating under the makers’ instructions.

Does a soft loop increase strap capacity?

No. Adding a loop does not raise the main strap’s WLL or the ratings of its hook or anchor. Verify the loop’s own applicable rating, then evaluate all connected components and the actual route. Do not add or double ratings to claim a cargo capacity for the full arrangement.

Does TorkStrap PRO include soft ties?

Yes. The current PRO listing includes two 24-inch soft ties. Its stated 3,333-pound safe working load belongs to the PRO strap listing; it should not be assigned automatically to each removable tie. Obtain the ties’ separate rating and attachment instructions from TorkStrap before relying on either detail.

How do I inspect soft loops?

Check the entire webbing path, both eyes, stitching, and any label before use and during reinspection. Look for cuts, abrasion, broken threads, burns, contamination, or other damage described by the maker. Remove a suspect loop from service and follow its manufacturer’s guidance; do not hide damage within a wrap.

Do I need to recheck the load?

Yes. Check the connection and cargo before departure, then stop safely to reinspect after the trip begins and when conditions change. Look for shifted cargo, lost tension, rubbing webbing, or a hook that no longer sits correctly. Spring-supported tension does not remove that responsibility.

Final Takeaway

Soft loops require compatible ratings, approved cargo points, hooks, straps, and anchors. Follow the loop maker’s method, check movement, and reinspect. Compare current TorkStrap PRO specifications, obtain its soft ties’ instructions and rating, and confirm compatibility and availability before use.
